Nitroglycerin M6 "ADD CBF"
A clean low-pass filter that does more than just add one

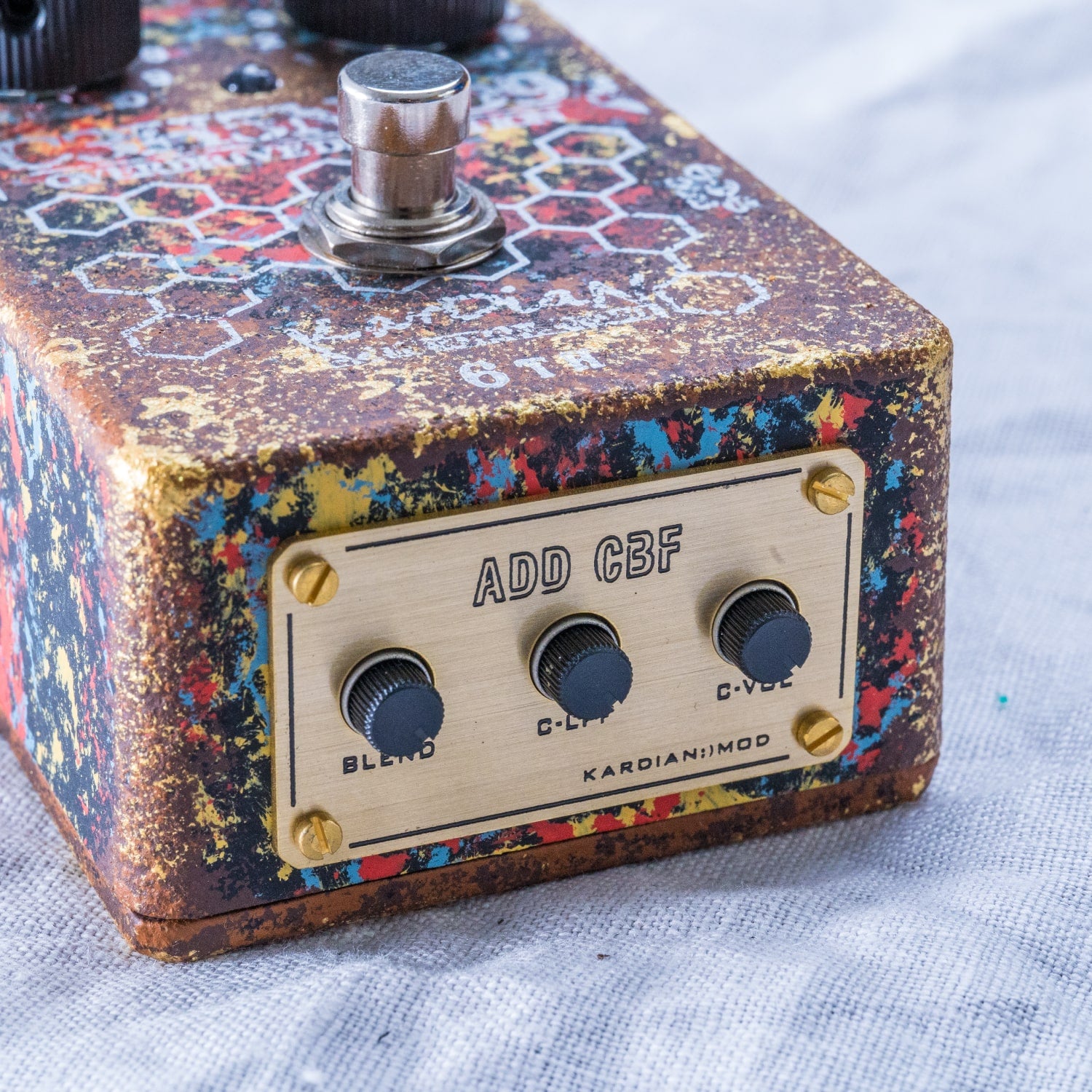

This is a special modification of the Clean Blend & Clean LPF pedal, which was specially made for a musician who ordered it from a well-known customer. This product has finally become an official product. By blending a high-quality clean booster into the effect section, you can adjust the attenuation of the original sound that occurs when the effect is applied. Also, by adjusting the LPF (Low-Pass-Factor) on the clean side, only the low component of the original sound can be blended. The LPF allows for optimal sound communication without masking each other. The "ADD CBF" module is unique in that it allows for optimal sound communication without masking each other.
The new sound blending in KarDiaN's Nitroglycerin M6 and ADD CBFs can add musicality to the original sound components that were previously lost with the use of effects pedals.
- SPECS -
- Input impedance : 1M
- Output impedance : 10kΩ
- Control : Volume、Drive、Treble、Bass
- Switching : True Bypass
- Connecting：1/4 inch standard phone jack x 2 (input, output)
- Power supply method：9V center minus DC power
- Current consumption : 14mA
- Dimension : Width (W) 72 mm, Depth (D) 121 mm, Height (H) 55 mm (including protrusions such as foot switches and jacks)
- Weight : 321g
- EAN : 4589825520567
- Accessories : Warranty card
- DISCLAIMER -
Please note that specifications are subject to change without notice due to product improvements. Also, the image is a sample. Please note that the paint finish may vary slightly from unit to unit. As a specification of the metal knob, touch noise is generated only when operating the knob. It is recommended that the knob be operated with the strings grounded (fingers touching the strings).
