Inheriting the DNA of the Smoggy Overdrive

In 2015, the legendary Smoggy Overdrive pedal was created by Mr. Yoshida of Y.O.S. Guitars. 3 Knobs is the orthodox style of overdrive, but its delicate sound tuning is what makes it still the one and only pedal of its kind. The 3 Knob is a traditional style overdrive pedal, but its delicate sound tuning is what makes it unique. Even when the Tone knob is turned down, it still retains its distinctive high-frequency beat and touch. The overdrive has a "smoky" smoggy sound to it.

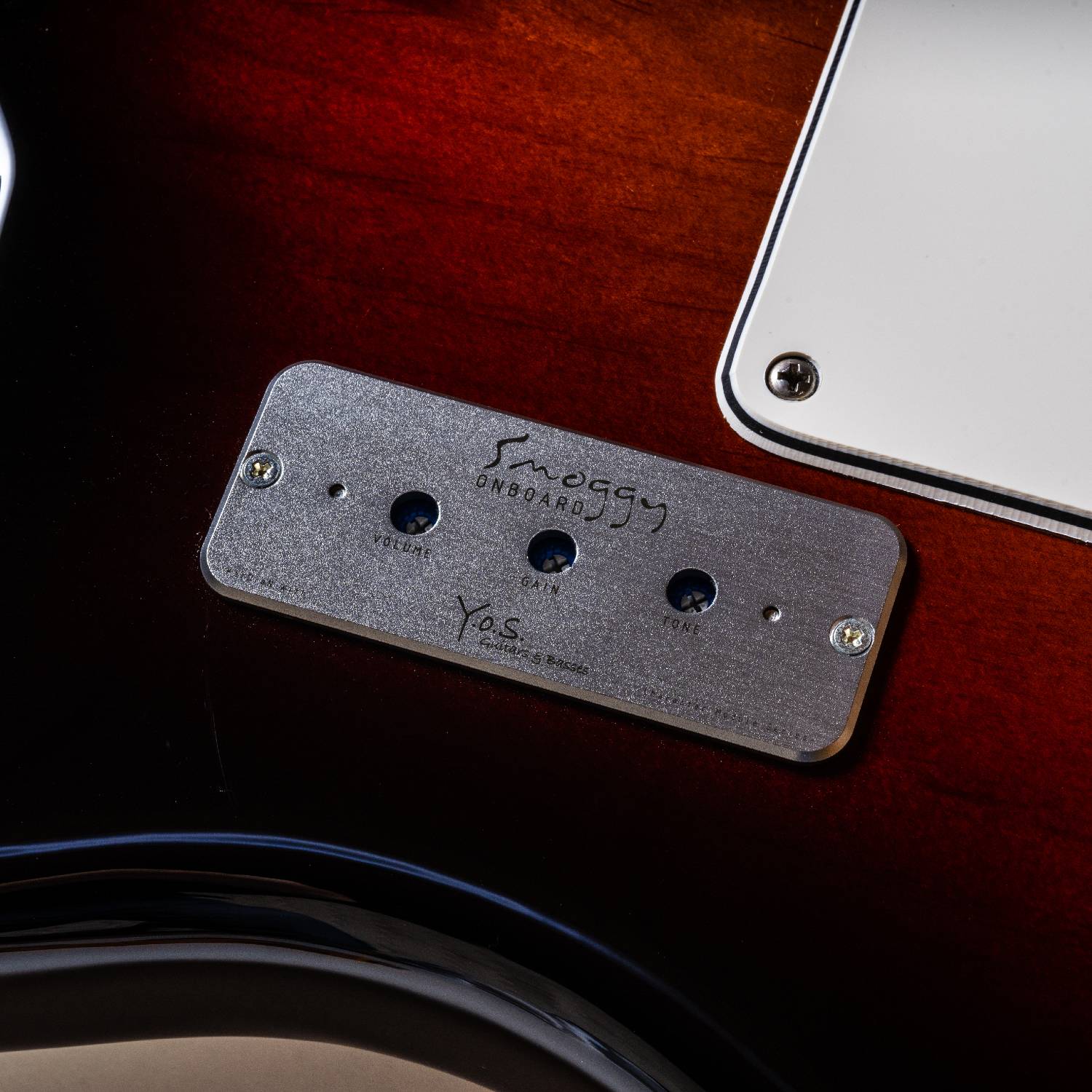

More and more musicians are using this pedal for its natural smoggy sound. It's so well received that even bassists who don't care for preamps are captivated by it. So, together with Kitada, the main designer of KarDiaN, and Yoshida of Y.O.S. Guitars, the creator of this pedal, we came up with the Smoggy Overdrive... which can be built directly into the instrument itself. The name is "Smoggy Onboard".

The "Smoggy Onboard" is a new product in the Smoggy series and the Character Module series that officially inherits the DNA of the Smoggy Overdrive. The Smoggy Overdrive's delicate sound tuning has been retained, and the development was started with Mr. Yoshida of Y.O.S. Guitars in charge of the adjustments before installation on the guitar itself. The distortion and tone, which are the foundation of the sound, were not changed, and the adjustments were made to keep them within the variable range required for guitar on-boarding, resulting in a product optimized for installation on the guitar itself. The "Smoggy Onboard" is the result of combining the excellent design and S/N ratio of KarDiaN's Character Module series with the sound tuning of Mr. Yoshida of Y.O.S. Guitars.

- CHARACTER MODULE SERIES -

The Character Module Series (hereafter CMS), the backbone of "Smoggy Onboard", is characterized by its "built-in battery mechanism" and "socket replacement". Thanks to this small housing, a 9V battery of the so-called 006P type ( 50 x 26 mm) can be stored in the CMS with only a simple installation process. Furthermore, the "Smoggy Onboard" can be interchanged with other CMS products in the socket without any additional modifications.

This allows you to experience the new playing experience of a character module with as little modification to your precious guitar as possible.

- DIMENSIONS -

DIMENSIONS PDF



- BUILT-IN BATTERY -

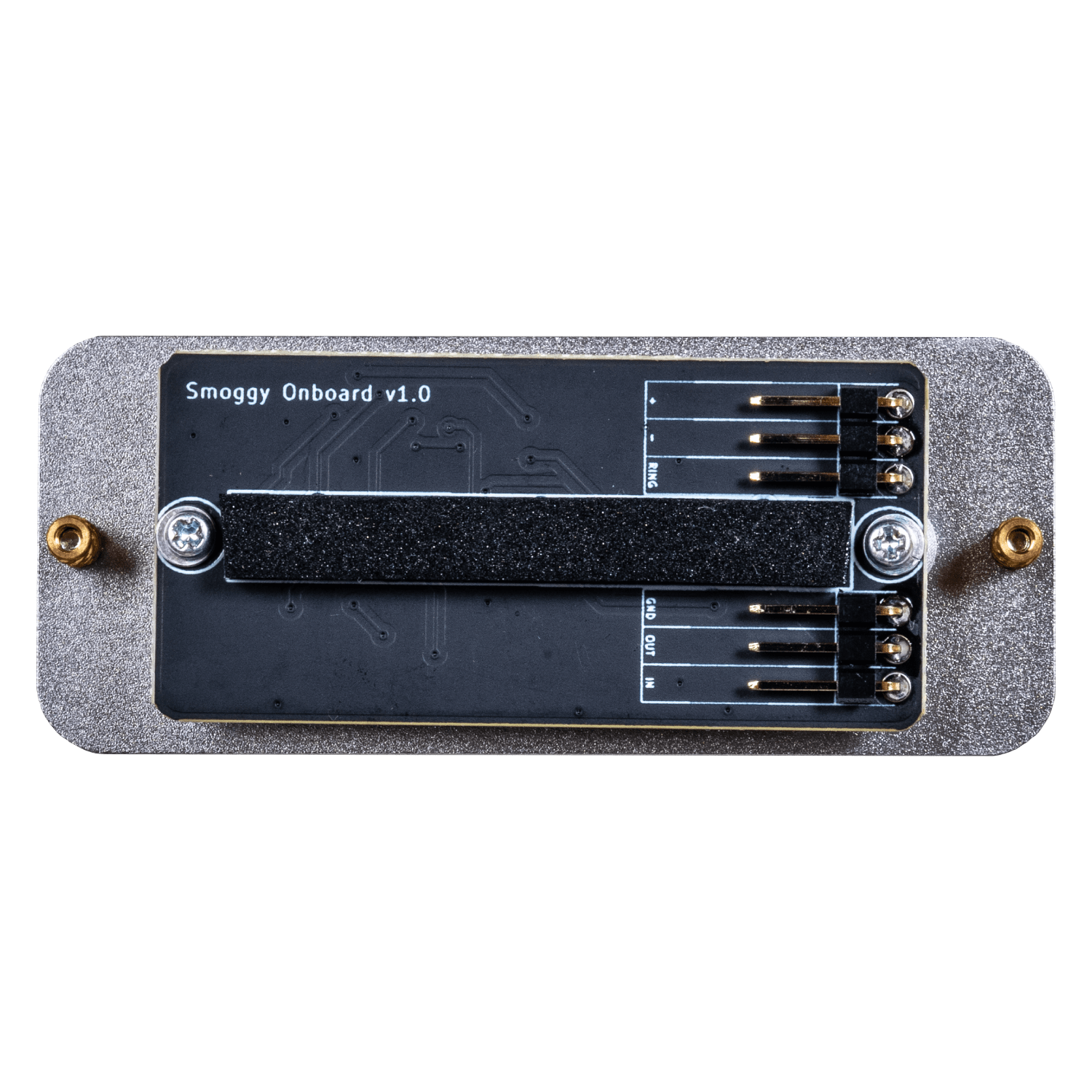

- REPLACEMENT USING SOCKET -

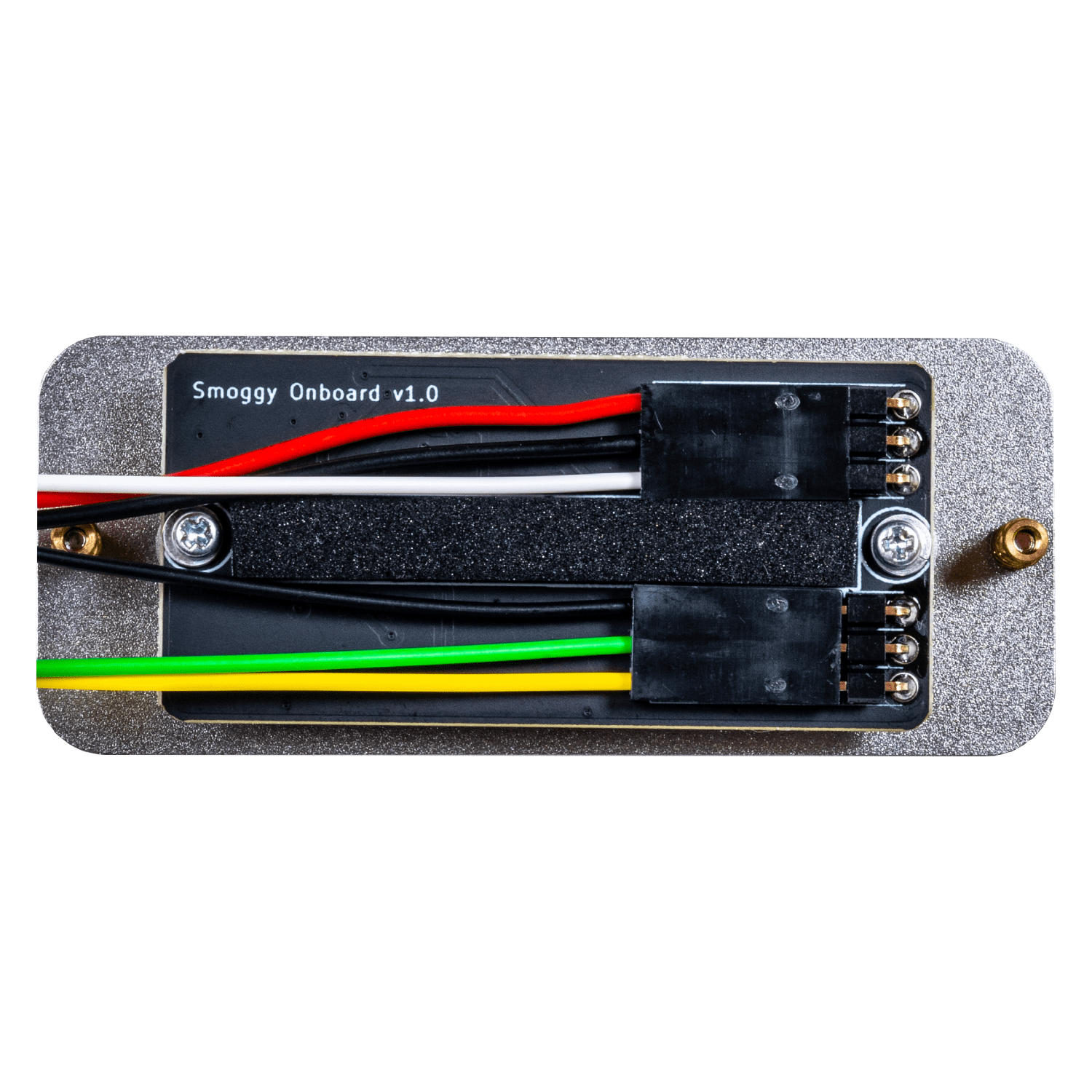

- WIRING DIAGRAM -
YELLOW  : Wiring for inputting output from pickups, etc.
GREEN  : Wires to be output from the character module itself
WHITE  : Wiring to the ring part of the switchable jack
BLACK  : Ground wire that connects to the common ground of the guitar

WIRING DIAGRAM PDF

- SPECS -

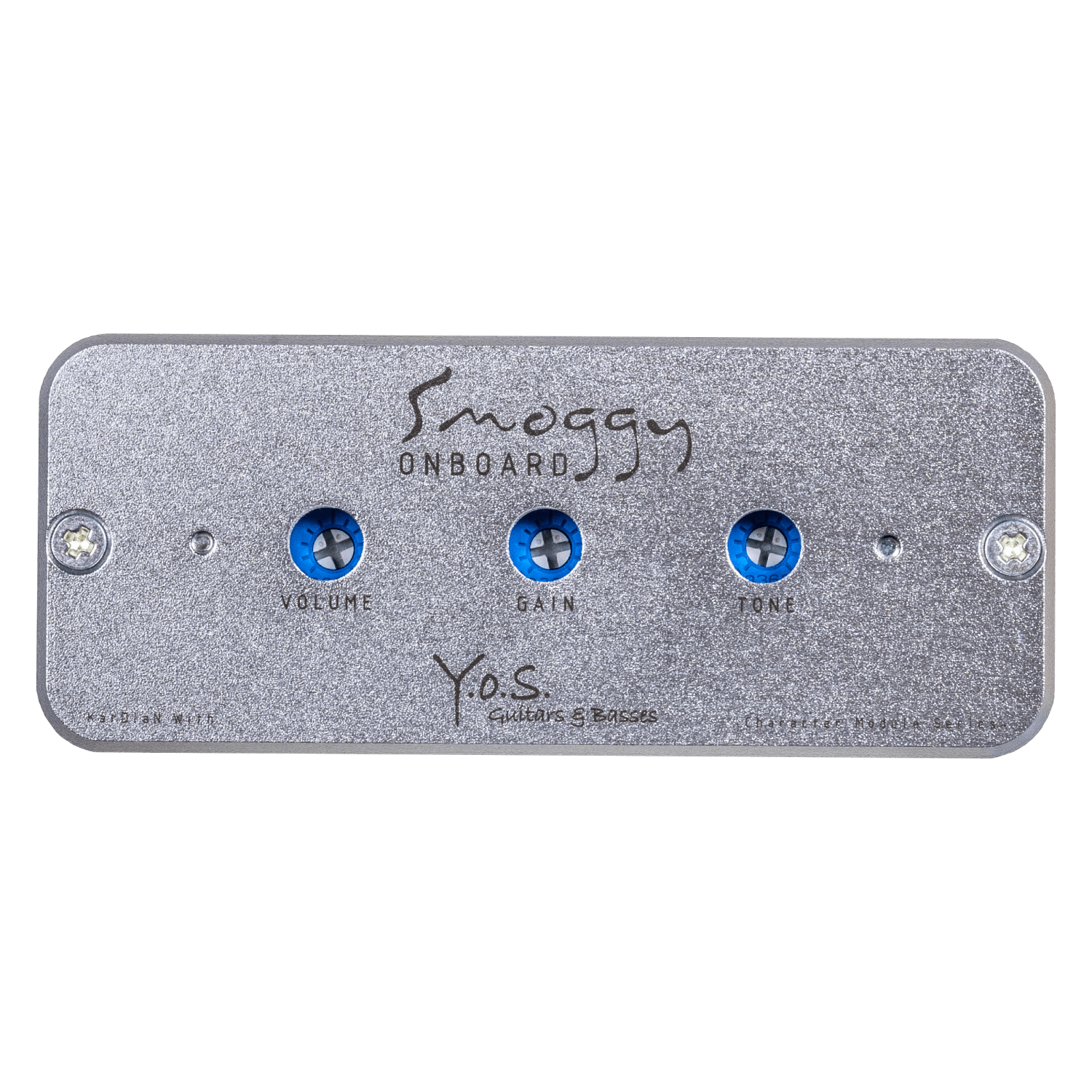

- Controls : Volume、Gain、Tone
- Power Supply : Battery powered, 9V to 18V
- Dimensions : Width (W) 70 mm, Depth (D) 29 mm, Thickness (H) 12.6 mm (excluding protruding parts such as wiring material)
- Weight : 22g
- Power consumption : 7mA
- EAN : 4589825520277
- Accessories : 2 mounting screws, 2 dodgy bit inserts (thread support material), warranty card

- DISCLAIMER -
When installing this product on your instrument, it may not be possible to install it on your existing instrument without additional processing. Forcible installation without modification may result in damage to your instrument. Please consult with your retailer, repair store, or other professional before installation. Please note that any problems or accidents that may occur during installation are the responsibility of the user and are not guaranteed by our company. Specifications are subject to change without notice due to product improvements.

The image is a sample. Please note that the anodizing process and laser printing may differ slightly from one unit to another. In addition, there may be dullness from the anodizing process and minor scratches from the machining process, but these are specifications.
